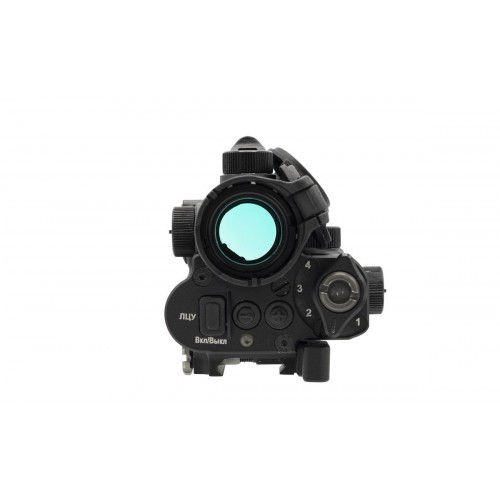

Vzor- 4 Red Dot Zenitco


ATTENTION !!!
IT IS STRICTLY PROHIBITED TO POINT A LASER RAY OR ITS MIRROR REFLECTION ON THE ORGANS OF VISION!!!

«Vzor-4» red dot sights are combined devices, that combine a red dot, a dual laser designator and an IR illuminator.
«Vzor-4» red dot sights are designed for aiming on different distances.

Technical specification:
Magnification
1х
Lens diameter
22 mm.
Aiming mark size (dot)
1 MOA
Aiming mark size (circle)
34 MOA
Compatibility with NVD
Yes
Adjustments
1 click = 1 MOA
Brightness of aiming mark
10 levels
Visible laser
20 mW 520 nm
IR laser
20 mW 850 nm
IR illuminator
0.5 W 850 nm

Battery type: 18650
Time of continuous work on one battery:

5 years – in «dot» mode with middle brightness with a turned off laser and IR illuminator;
20 hours – in «dot and circle» mode with maximum brightness with a laser turned on (IR illuminator – off);
5 hours – in «dot and circle» mode with maximum brightness with a laser and IR illuminator turned on in maximum brightness.

Values are valid at room temperature and the proper quality of the battery.
Temperature: from -50 to +60° С.

Water resistance: 5 m.
Materials:

Red dot: Aluminum alloy D16T;
Lens covers: Polymer.
Weight (without battery and lens covers): 279 ± 2 gr.
Overall dimensions (without lens covers): (93х69х74) ± 2 mm.

The kit includes:

Red dot
1 pc.
Battery
1 pc.
Lens covers
1 pc.
KV-D2 remote switch
1 pc.
Manual
1 pc.
Packaging
1 pc.
Charging cord and adapter
1 pc.


Aiming mark:
aiming mark is red
shape and brightness may be adjusted
shree shapes are possible:




Circle and dot Circle Dot

Warranty:

The manufacturer guarantees the conformity of the product with the technical specifications, the trouble-free operation of the device for 12 months from the date of sale, provided that the consumer complies with the operating rules set out in this manual.
